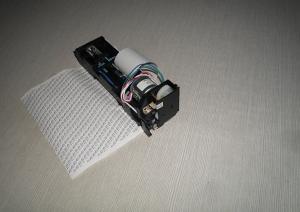

112 mm Thermal Label Printer Mechanism LTPV445 , High Speed Mobile Receipt Printer

Place of Origin : China

Brand Name : MASUNG

Certification : CE; ROSH

Model Number : MS445

MOQ : 1

Packaging Details : Carton

Delivery Time : 5~8 days

Payment Terms : T/T/Paypal/Western union

Supply Ability : 2,000 units/monthly

Contact Now


112 mm Thermal Label Printer Mechanism LTPV445 , High Speed Mobile Receipt Printer


Quick details:


Compatible with mechanism LTPV445
► Ultra printing width 112mm
► High speed max85mm/s
► RS-232 and TTL interfaces by option
► Label and thick thermal paper supporting
► Platen-free design for easy paper loading



Description:



MS445
is totally compatible with seiko printer mechanism LTPV445 which is widely used for medical and meter intruments.



specification:

Mechanism

MS445

Printing Method

Thermal dot line printing

Dots/line

832 dots/line

Dot pitch

8 dots/mm

Paper width

112 mm

Printing width

104 mm

Paper thickness

60~135 um

Printing speed

max 85 mm/s

Paper feeding direction

90°

sensor

Thermal head temperature: thermistor

Head up: photoelectric sensor

Paper out :photo interrupter

Operation voltage(V)

Vdd:4.5 to 5.5

Vp:4.2 to 8.5

Current (A)

Printer head: 3.33

Motor: 1.0

Reliability

Circuit: over 110 million pulses

Mechanism: over 50 km

Working temperature

0 – 50 ℃

Dimension (L x W x H)

125X 34.5 X 39.5 mm

Weight

About 130 g




Application:



Measure/medical device; industrial equipment; weight scale; fire controller; analyzer printer , voting machine and more


Competitive Advantage:

Low cost

Brand-name printer parts

Android system support

Customization offer

Prompt delivery

Small order accepted
