Android Small Handheld Label Printer Module Systems 200mm / S

Product Categories

Shenzhen Masung Technology Co. Ltd

Contact Now

Android Small Handheld Label Printer Module Systems 200mm / S

Name: Android Small Handheld Label Printer Module Systems 200mm S
Brand: MASUNG
Price: 120 USD

China Android Small Handheld Label Printer Module Systems 200mm / S factory

Place of Origin : China

Brand Name : MASUNG

Certification : CE; ROSH

Model Number : MS-D347-TL

MOQ : 1

Packaging Details : Cartons and foam materials

Delivery Time : 5~8 days

Payment Terms : T/T/Paypal/Western union

Supply Ability : 3,500 units/monthly

Price : USD120~150/piece

Type : 3 inch thermal printer

Mechanism : CAPD347

Printing method : Thermal dot line printing

Paper width : 80 mm

Printing width : 72 mm

Roll diameter : Max 90 mm ( external roll support)

Paper thickness : 54~78 um

Printing speed : 200 mm/s

Paper feed direction : 180° horizontal

Cutting type : Full/partial ( by adjustable)

Contact Now

Android Small Handheld Label Printer Module Systems 200mm / S

Quick details:

► Original printer mechanism CAPD347

► Small size

► High speed 200mm/s

► Full/partial cutting method (by adjustable)

► Paper jam detection

► Dragging paper detection

► Blackmark detection

► Print label sticker

► Multiple barcodes support

Description:

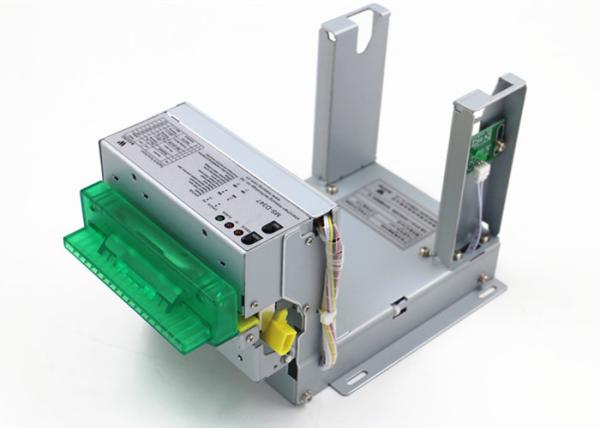

MS-D347-TLM(a) is small size 3 inch thermal printer with "paper jam prevention" design. it is widely used for gas station.

Specification:

Mechanism:			CAPD347
Printing method			Thermal dot line printing
Dots/line			576 dots/line
Dot pitch			8 dot/mm
Paper width			80 mm
Printing width			72 mm
Roll diameter			Max 90 mm ( external roll support)
Paper thickness			54~78 um
Printing speed			200 mm/s
Paper feed direction			180° horizontal
Sensors	Head temperature		Thermistor
	Paper press shaft		Mechanical switch
	Paper end		Photo interrupter
Cutting type			Full/partial ( by adjustable)
Font size			ASCII:917;1224; Chinese: 24*24
Power supply		Logic circuit	4.75~5.25 V
		Motor	21.6~26.4 V
Dimension (LWH)			227.5127.8131.45 mm
Weight			Approx 1.92 kg
Reliability			Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage temperature	-25℃~70℃
		Storage temperature	10~90% RH

Controlling board:
Interface	RS-232 /USB/Parallel
power supply	DC 24V/2.5A
Command set	ESC/POS
Barcode	supported
Firmware location	512KB Flash memory
Buffer	32 KB
SRAM	64KB (extra)
Driver	Parallel/USB driver
System	Windows/Android/Linux OS
Accessories:	Sensors	paper near end sensor;
		paper jam sensor;
		dragging paper sensor;
	Paper holding unit;
	Paper bezel(paper guide mouth)
	Interface connector;
	Power supply unit
	Cable

Application:

parking system; payment kiosk; ticket vendor; Self-service terminal; coupon machine; ATM; queuing management system; lottery machine; industrial heavy duty printer and more

Competitive Advantage:

Certificated product

Small order accepted

Buyer label offer

Brand-name printer parts

Customization offer

Prompt delivery

Product performance

Android Small Handheld Label Printer Module Systems 200mm / S Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
